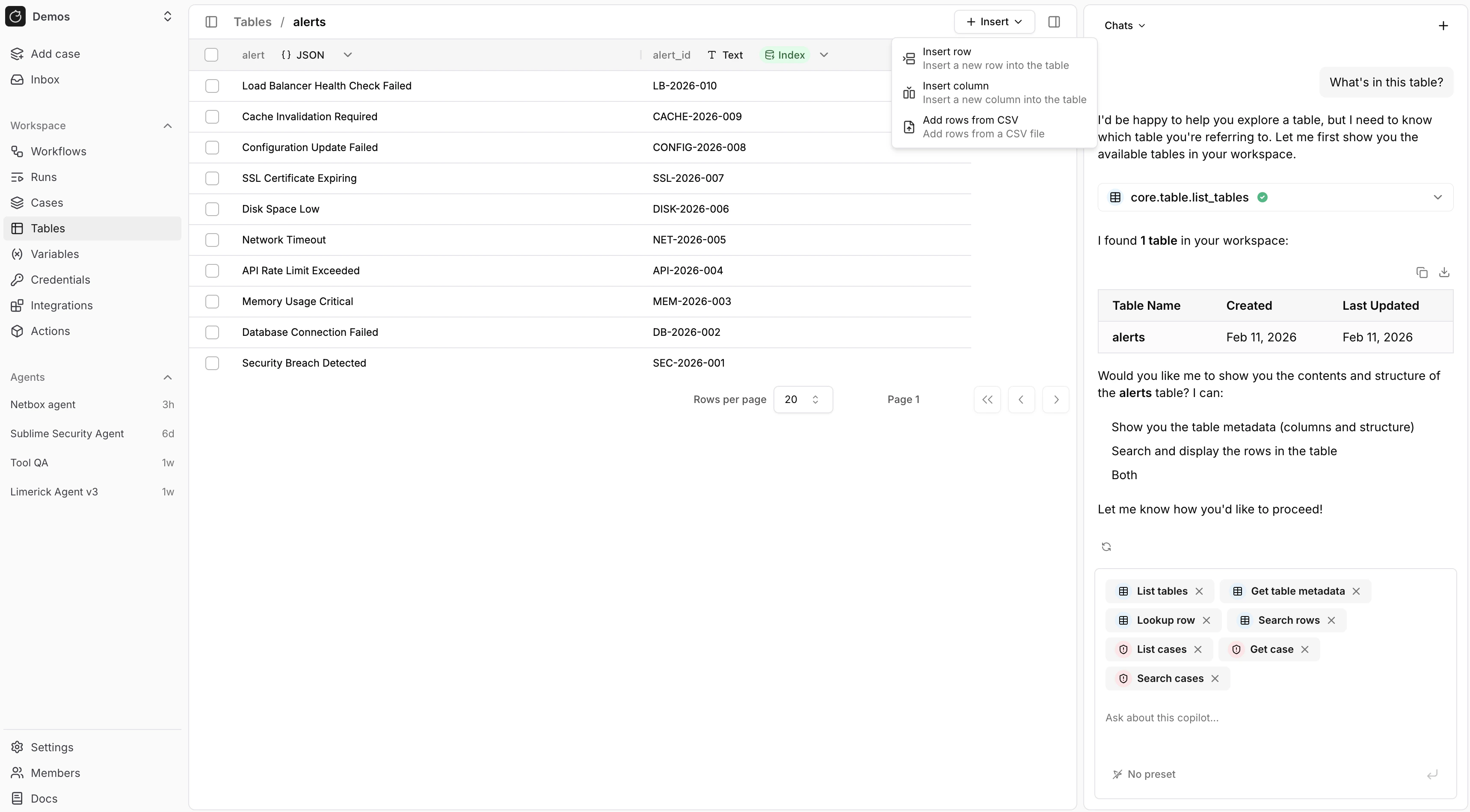

Tables

Tables let you store structured data in your workspace. You can use them from the UI or from core.table.* actions in a workflow definition. Use tables when you want to:

Keep durable records across workflow runs
Look up known values such as users, hosts, or indicators
Search and export structured data for investigation or reporting
Reuse the same dataset across multiple workflows

Columns

Each table has a schema that defines its columns. Choose column types based on the data you want to store and query. When you define columns in the UI or in core.table.create_table, use the same uppercase type values exposed in the custom tables picker: You can create tables with the following column types:

TEXT
INTEGER
NUMERIC
BOOLEAN
DATE
TIMESTAMPTZ
JSONB
SELECT
MULTI_SELECT

Use TEXT, INTEGER, NUMERIC, and BOOLEAN for simple fields. Use DATE or TIMESTAMPTZ for time-based values, JSONB for nested structured data, and SELECT or MULTI_SELECT when the value must come from a fixed list. Case custom fields use the same storage type family: TEXT, INTEGER, NUMERIC, BOOLEAN, DATE, TIMESTAMPTZ, JSONB, SELECT, and MULTI_SELECT. In the case field picker, raw JSONB is currently surfaced through the URL kind, and Long text is layered on top of TEXT.

Rows

Rows hold the actual records in a table. You can insert, update, delete, look up, and search rows as your workflows process new events. This works well for data such as:

Asset inventories
User allowlists
Enrichment results
Investigation evidence
External system references

If you already know the field and value you want, use core.table.lookup. If you need broader filtering or text search, use core.table.search_rows. For example, use core.table.lookup when you know the exact value:

- ref: lookup_asset
  action: core.table.lookup
  args:
    table: asset_inventory
    column: hostname
    value: ${{ TRIGGER.hostname }}

For example, use core.table.search_rows when you want to search across rows:

- ref: search_assets
  action: core.table.search_rows
  args:
    table: asset_inventory
    search_term: production
    limit: 25

core.table.search_rows also filters on row creation time: start_time and end_time bound each row’s created_at timestamp. The limit ceiling is 200 and larger values raise an error; page with paginate: true and cursor to read more rows, or use core.table.download, which returns up to 1000 rows.

Index and upsert

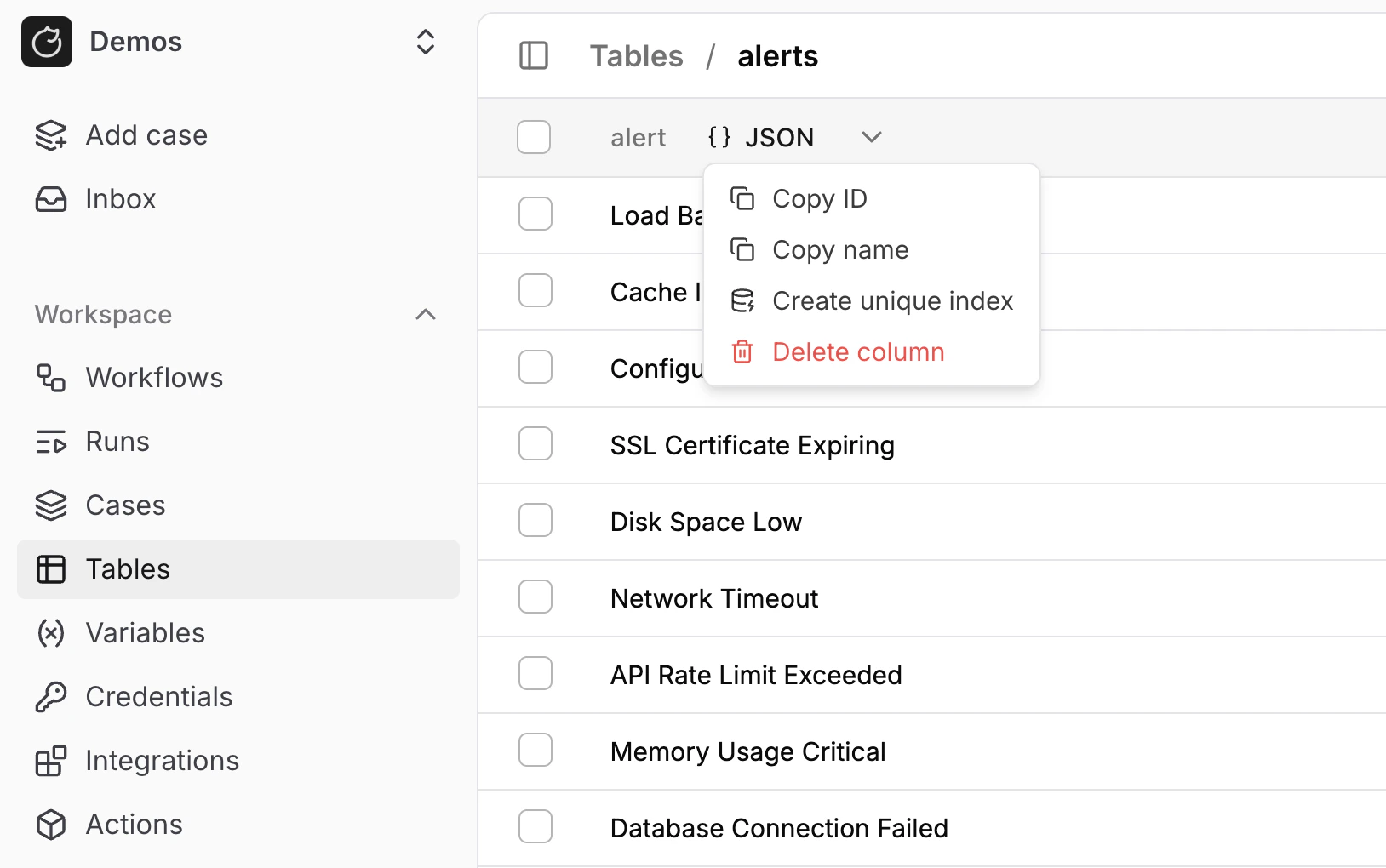

You’ll often need to deduplicate data or require all values in a column to be unique. You can do that by creating an index and then using core.table.insert_row with upsert: true.

For example:

One row per hostname
One row per email address
One row per alert ID
One row per hash value

A unique index enforces that rule, and core.table.insert_row with upsert: true updates the existing row instead of creating a duplicate. To create the index from a workflow definition, create the table with core.table.create_table, then set the column’s is_index with core.table.update_column:

- ref: ensure_alerts_table
  action: core.table.create_table
  args:
    name: alerts
    columns:
      - name: alert_id
        type: TEXT
    raise_on_duplicate: false
- ref: index_alert_id
  action: core.table.update_column
  depends_on:
    - ensure_alerts_table
  args:
    table: alerts
    column: alert_id
    update:
      is_index: true

A table can have one single-column unique index, and creating it fails if the column already contains duplicate values; remove the duplicates first. Setting is_index: true is not idempotent: a second call raises Table cannot have multiple unique indexes. A workflow that repeats the index step on every run must guard it, and downstream steps need join_strategy: any:

- ref: alerts_metadata
  action: core.table.get_table_metadata
  depends_on:
    - ensure_alerts_table
  args:
    name: alerts
- ref: index_alert_id
  action: core.table.update_column
  depends_on:
    - alerts_metadata
  run_if: ${{ FN.length(ACTIONS.alerts_metadata.result.columns[?(@.is_index == true)]) == 0 }}
  args:
    table: alerts
    column: alert_id
    update:
      is_index: true
- ref: upsert_alert
  action: core.table.insert_row
  depends_on:
    - alerts_metadata
    - index_alert_id
  join_strategy: any
  args:
    table: alerts
    upsert: true
    row_data:
      alert_id: ${{ TRIGGER.alert_id }}

Vector search

Enterprise Edition Vector search finds rows by meaning in the TEXT columns you choose. Connect an LLM provider that offers an embedding model first: OpenAI, Gemini, Amazon Bedrock, Ollama, or vLLM. On plans without vector search, the status badge and the Enable vector search menu item open an Enterprise only dialog.

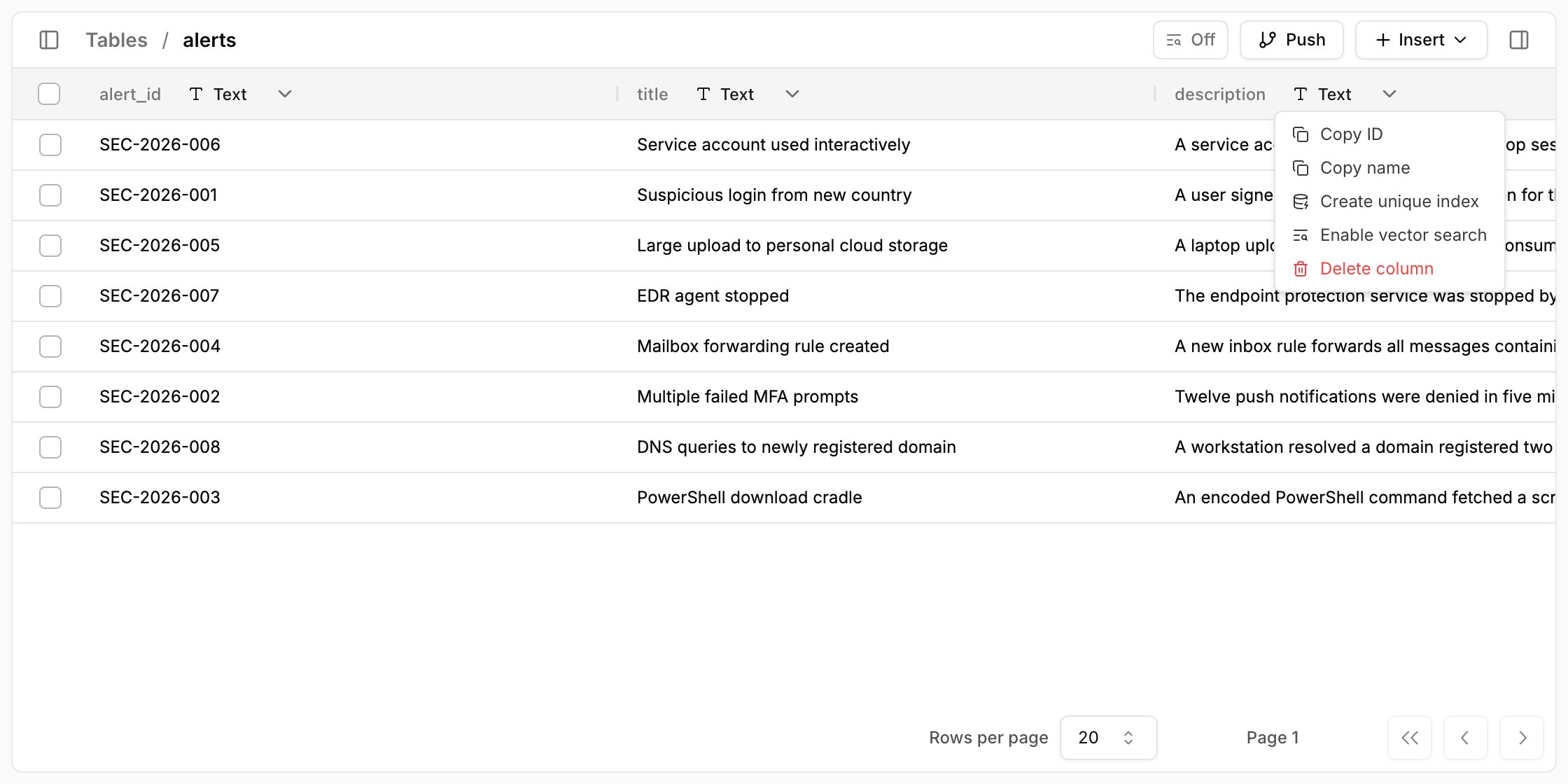

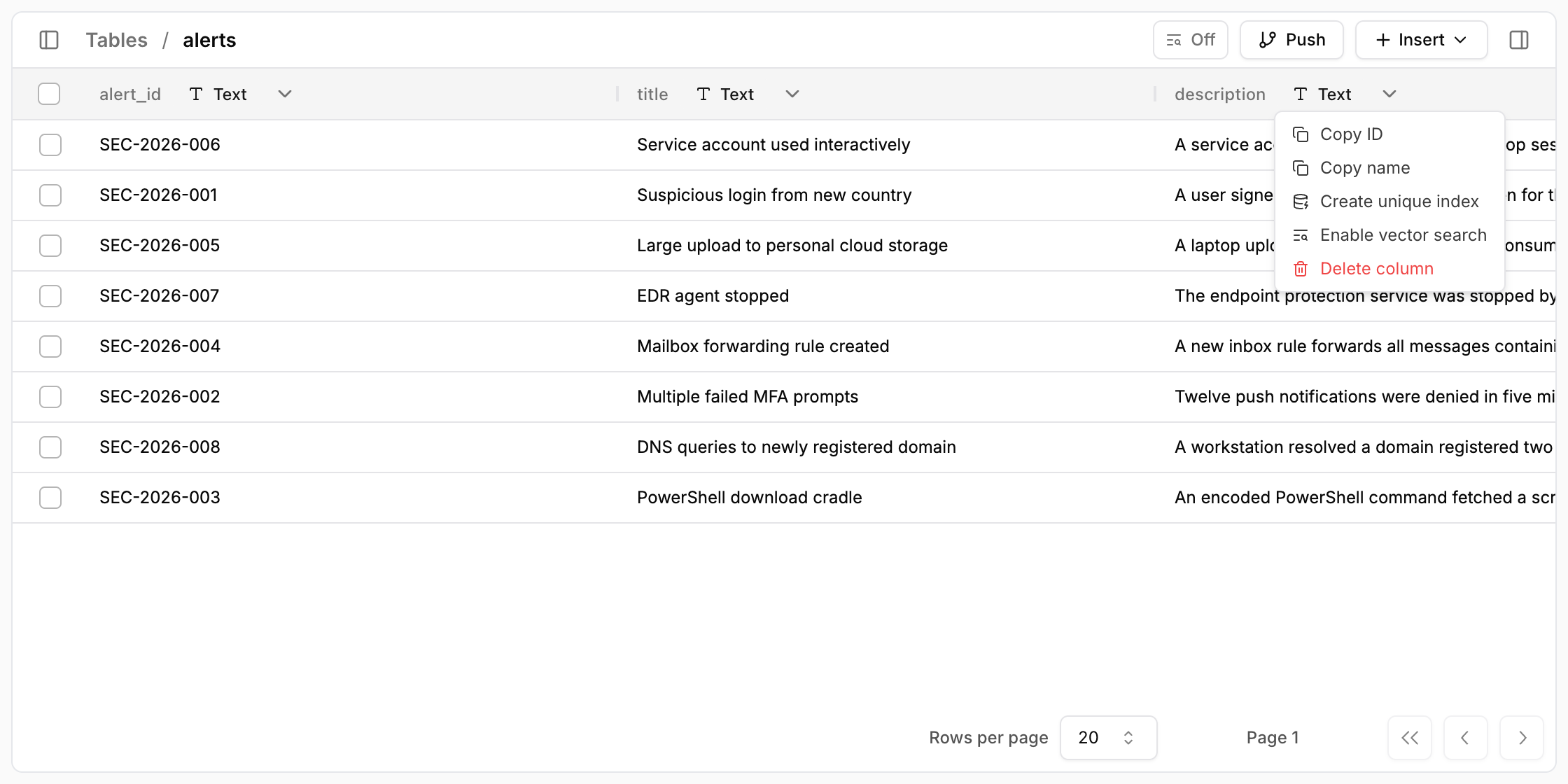

Enable vector search on a column

Open the table, click the arrow in a TEXT column header, and select Enable vector search.

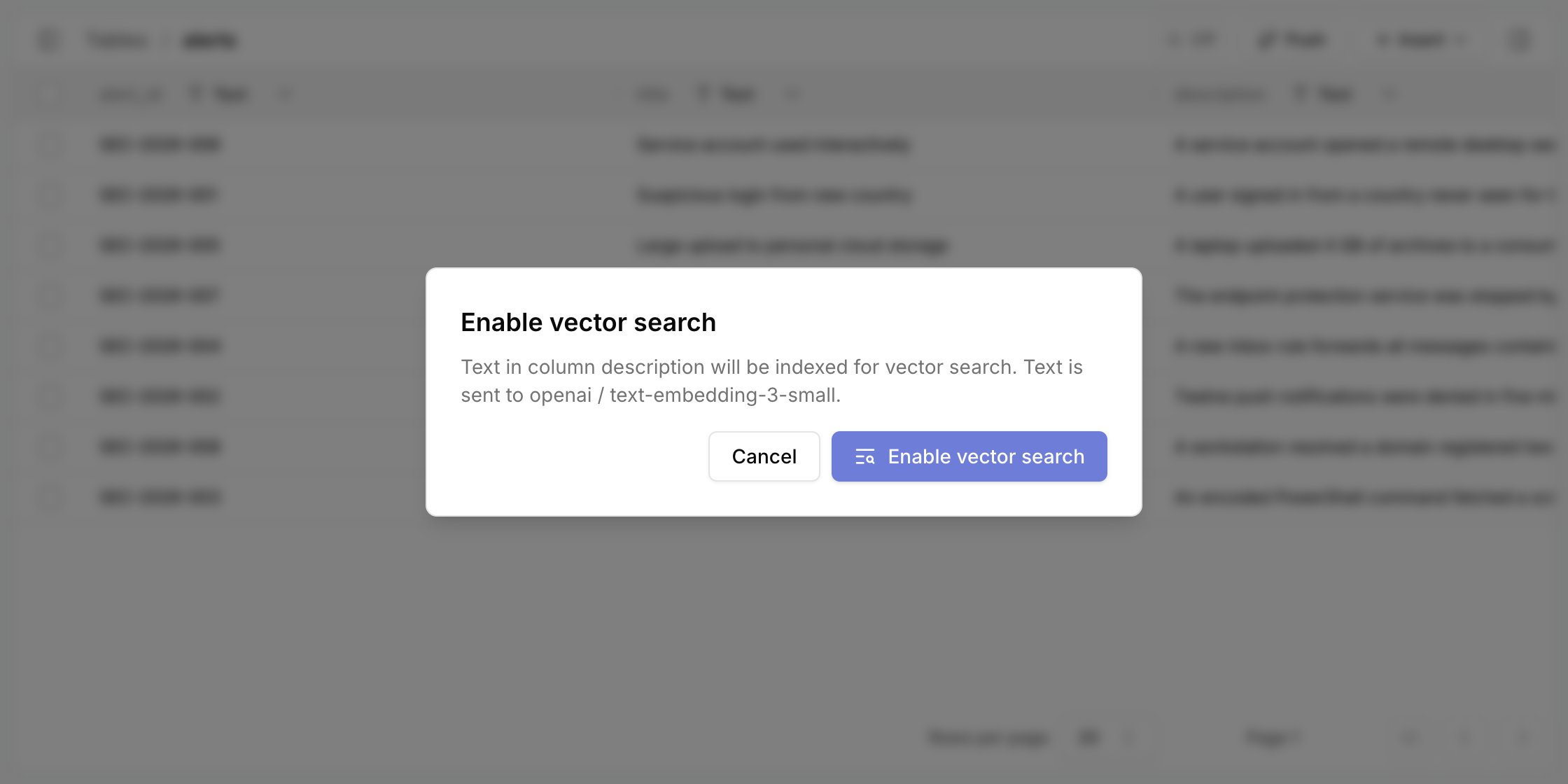

Confirm

The dialog names the provider and embedding model that receive the column’s text. Click Enable vector search.

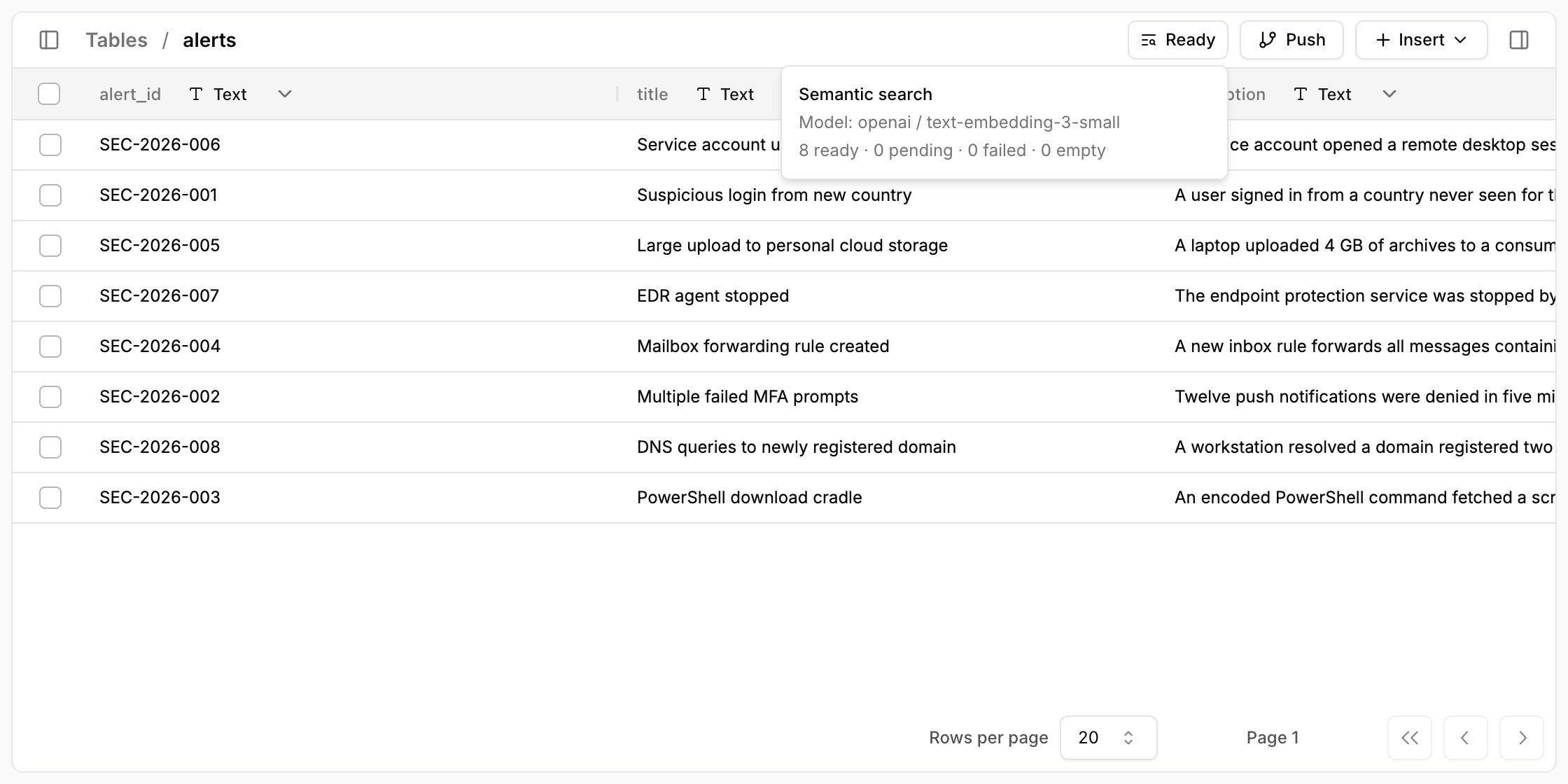

Wait for the index

The status badge in the page header reads Indexing while Tracecat indexes the rows, then Ready. Hover over the badge to see the embedding model and how many rows are ready, pending, failed, or empty.

Search by meaning

Call core.table.search from a workflow. Each result holds the row_id, a similarity score, and the matching excerpt.

- ref: find_similar_alerts
  action: core.table.search
  args:
    table: alerts
    query: stolen credentials used to sign in
    limit: 5

Repeat the first two steps to add more columns. To remove a column, select Disable vector search from the same menu; Tracecat rebuilds the index for the remaining columns. core.table.search takes these arguments:

table: Required table name.
query: Required search text, up to 512 tokens or the embedding model’s smaller input limit.
limit: Optional rows per page, from 1 to 100. Defaults to 10.
cursor: Optional next_cursor from the previous page. Keep the other arguments unchanged. Cursors expire after five minutes, and one search returns at most 100 rows across all pages.
allow_partial: Optional boolean. Defaults to false, which fails while the index is still building. Set it to true to search only rows that are already indexed.

The result has items, next_cursor, has_more, and index. Each item holds one distinct row: row_id, score, and match, where match names the column_name and the matching text. score is cosine similarity, not a confidence level, so compare scores within one search rather than against a fixed threshold.

Table actions

Use core.table.* actions when you want your workflows to work with tables directly.

Tables to create tables, inspect metadata, and update table settings
Columns to add, update, and delete columns
Lookups to look up and search rows
Rows to insert, update, and delete rows
Export to download a table
Use core.table.insert_row with upsert: true when you want to update an existing row that matches a unique index

core.table.create_table takes columns as a JSON array of column objects. This is the same schema you use for tables that you later link to cases.

name: Required string. Use letters, numbers, and underscores, and start with a letter or underscore.
type: Required uppercase string. Use TEXT, INTEGER, NUMERIC, BOOLEAN, DATE, TIMESTAMPTZ, JSONB, SELECT, or MULTI_SELECT.
nullable: Optional boolean. Defaults to true.
default: Optional value. It must match the column type.
options: Optional array of strings. Required for SELECT and MULTI_SELECT, and invalid for other types.

For example:

- ref: ensure_inventory_table
  action: core.table.create_table
  args:
    name: asset_inventory
    columns:
      - name: hostname
        type: TEXT
      - name: owner
        type: TEXT
    raise_on_duplicate: false
- ref: upsert_asset
  action: core.table.insert_row
  args:
    table: asset_inventory
    upsert: true
    row_data:
      hostname: ${{ TRIGGER.hostname }}
      owner: ${{ TRIGGER.owner }}
- ref: lookup_asset
  action: core.table.lookup
  args:
    table: asset_inventory
    column: hostname
    value: ${{ TRIGGER.hostname }}

For example, this upserts one row per alert ID:

- ref: upsert_alert
  action: core.table.insert_row
  args:
    table: alerts
    upsert: true
    row_data:
      alert_id: ${{ TRIGGER.alert_id }}
      status: ${{ TRIGGER.status }}
      severity: ${{ TRIGGER.severity }}
