Overview

Tracecat supports built-in OAuth integrations and custom OAuth providers. OAuth integrations expose tokens through secret expressions. OAuth integrations

​
Grant types

OAuth grant types:
  • Delegated access (authorization_code): Tracecat stores a user token after a user completes the OAuth login flow.
  • Client credentials (client_credentials): Tracecat stores a service token for server-to-server access.

​
Configure a provider

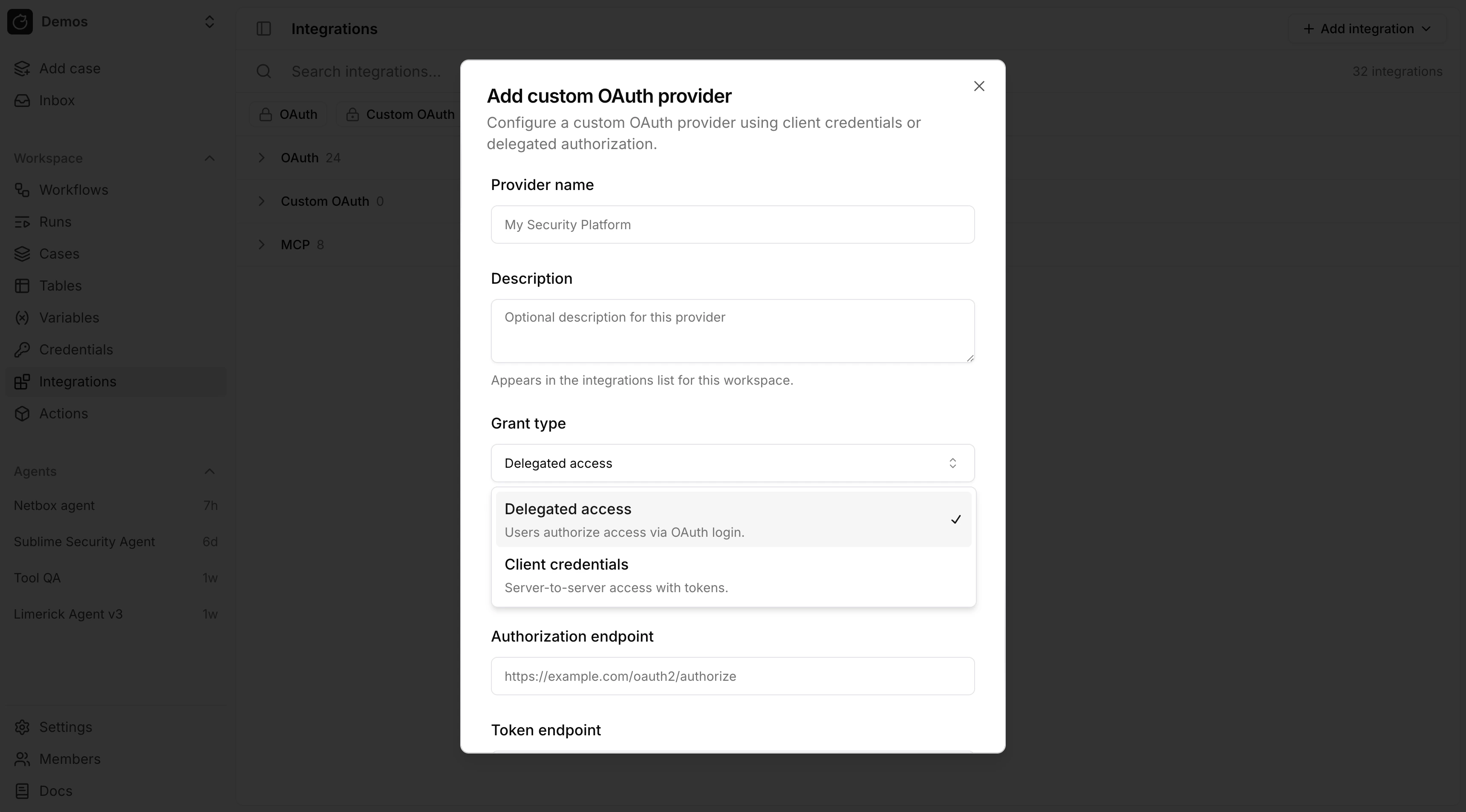

Built-in OAuth integrations are listed on the Integrations page. For custom OAuth, use Add integration → OAuth provider (or Add custom OAuth provider under Custom OAuth). Most providers require these fields:
  • Client ID
  • Client secret
  • Authorization endpoint
  • Token endpoint
  • Scopes
After you save a custom provider, connect it (complete the OAuth flow) when using delegated access so Tracecat can issue tokens.

​
Use OAuth tokens in expressions

Use the same ${{ SECRETS... }} syntax as workflow actions. Custom secrets (API keys, SSH, mTLS, CA bundles, and so on):
${{ SECRETS.<secret_name>.<KEY> }}
OAuth tokens live under <provider_id>_oauth. The key is the provider ID in uppercase plus _USER_TOKEN or _SERVICE_TOKEN:
  • authorization_code: ${{ SECRETS.<provider_id>_oauth.<PROVIDER_ID_UPPER>_USER_TOKEN }}
  • client_credentials: ${{ SECRETS.<provider_id>_oauth.<PROVIDER_ID_UPPER>_SERVICE_TOKEN }}
${{ SECRETS.slack_oauth.SLACK_USER_TOKEN }}
${{ SECRETS.google_docs_oauth.GOOGLE_DOCS_SERVICE_TOKEN }}
Optional fallback when either grant type is allowed:
${{ SECRETS.microsoft_sentinel_oauth.MICROSOFT_SENTINEL_USER_TOKEN || SECRETS.microsoft_sentinel_oauth.MICROSOFT_SENTINEL_SERVICE_TOKEN }}

​
Python UDFs

Declare credentials in @registry.register(..., secrets=[...]).
  • RegistrySecret: static keys; set secret_type to ssh_key, mtls, or ca_cert when needed (secret types). Optional: optional, optional_keys.
  • RegistryOAuthSecret: declares a dependency on an existing OAuth integration. Pass the provider_id and grant_type that match the integration in your workspace (a mismatch — for example declaring authorization_code when the integration uses client_credentials — will not resolve).
Read values with secrets.get("<KEY>") (key only, e.g. GOOGLE_DRIVE_USER_TOKEN), not a SECRETS. path.
from tracecat_registry import RegistryOAuthSecret, RegistrySecret, registry, secrets

api = RegistrySecret(name="exa", keys=["EXA_API_KEY"])

oauth = RegistryOAuthSecret(
    provider_id="google_drive",
    grant_type="authorization_code",
)

​
YAML

Under definition, set a secrets list (same validator as Python). Custom (optional secret_type for structured secrets):
definition:
  secrets:
    - name: exa
      keys: ["EXA_API_KEY"]
    - name: ansible
      keys: ["PRIVATE_KEY"]
      secret_type: ssh_key
OAuth:
definition:
  secrets:
    - type: oauth
      provider_id: microsoft_teams
      grant_type: authorization_code
The provider_id and grant_type must match an integration already configured in your workspace. Use ${{ SECRETS.<provider_id>_oauth.<TOKEN_KEY> }} in args. Set optional: true on an OAuth entry when it is not always required.

​
Example providers

See integrations/google_drive.py and integrations/slack_sdk.py for UDFs that use OAuth credentials. See tracecat_registry/core/ssh.py for an ssh_key secret example. For YAML templates, see microsoft_teams/send_message.yml (authorization_code), google_docs/create_document.yml (client_credentials), and microsoft_sentinel/.../get_alert_rule_template.yml (optional dual grant). See templates/tools/exa/search.yml for a simple API key template. For the full list of built-in provider IDs, see tracecat/integrations/providers/__init__.py.

​
OAuth and actions

Registry actions reference OAuth integrations but do not create them. Configure a built-in or custom provider in Integrations first, then declare RegistryOAuthSecret (Python) or type: oauth (YAML) so the action requires that integration at runtime. Syntax and examples are in Use OAuth tokens in expressions above.

​
OAuth and MCP

Remote MCP integrations can use an existing OAuth integration. For custom remote MCP servers:
  1. Create a custom OAuth provider.
  2. Connect that provider.
  3. Create an MCP integration and attach the connected OAuth integration.

​
FAQ

When you save a custom provider, Tracecat derives a provider ID from the display name or the ID you enter (slugified). If that value does not already start with custom_, the server prepends custom_ so it does not collide with built-in providers. If the ID is already taken, a numeric suffix is added.
No. RegistryOAuthSecret and YAML type: oauth entries declare that the action requires an existing OAuth integration — they do not register one. Create the integration from Configure a provider (or contribute a built-in provider). Once it exists, your action can reference its tokens via ${{ SECRETS.<provider_id>_oauth... }}.
Out-of-the-box providers are implemented in the Tracecat app and get stable IDs (for example slack, google_drive) without the UI custom_ rule.
  1. Subclass AuthorizationCodeOAuthProvider or ClientCredentialsOAuthProvider under tracecat/integrations/providers/. See slack/oauth.py for a full example.
  2. Register the class in _PROVIDER_CLASSES.
  3. Keep the registry package aligned: same provider_id and grant_type in RegistryOAuthSecret (Python) and type: oauth entries (YAML) so actions resolve the same integration as the UI.
