External secret stores

Enterprise Edition

Overview

An external secret store lets a workspace secret point at a value that stays in AWS Secrets Manager. Tracecat stores only the reference: the store, the secret name or ARN, and the key mapping. Workflows read ${{ SECRETS.<name>.<key> }} exactly as they do for local secrets. Organization admins own stores under Organization settings, and authorize the workspaces that may reference each one. Workspace members then create AWS-backed secrets against an authorized store.

Trust model

Tracecat assumes a role you own in your AWS account:

Tracecat calls sts:AssumeRole on the role ARN you register, using its own workload identity and an external ID that Tracecat generates when you create the store. The external ID is server-owned and never changes.
The assumed session reads the AWSCURRENT version of the secret with secretsmanager:GetSecretValue. Tracecat requests no list, write, delete, or rotation permissions.
Tracecat persists no remote value. Each resolution fetches from AWS, injects the value into the action sandbox, and discards it. Nothing is cached between runs.
Failures are sanitized. Error messages carry a failure code and the AWS error code, never any part of the secret value.

Prerequisites

Your Tracecat deployment must expose the AWS principal that assumes your role. The operator sets both variables on every Tracecat service:

Variable	Value
`TRACECAT__AWS_ASSUME_ROLE_ACCOUNT_ID`	The 12-digit AWS account ID of the Tracecat deployment, such as `210987654321`
`TRACECAT__AWS_ASSUME_ROLE_PRINCIPAL_ARN`	The full ARN of the Tracecat workload principal, such as `arn:aws:iam::210987654321:role/tracecat-executor`

On self-hosted deployments, set them in your .env and restart the stack; the Docker Compose files already pass them through. Until they are set, the store card shows a <tracecat-principal-arn> placeholder instead of a usable trust policy. The Tracecat workload also needs sts:AssumeRole permission on the role ARNs it will assume.

Create the IAM role

Create one role per store in the AWS account that holds your secrets.

Create the store in Tracecat first

Tracecat generates the external ID when the store is created, so create the store in Organization settings before you write the trust policy. Use a placeholder role ARN if you have not created the role yet, then update the store with the real ARN.

Attach the trust policy

Copy the trust policy from the store card. It names the Tracecat principal and conditions the assumption on your store’s external ID:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Principal": {
        "AWS": "arn:aws:iam::210987654321:role/tracecat-executor"
      },
      "Action": "sts:AssumeRole",
      "Condition": {
        "StringEquals": {
          "sts:ExternalId": "tracecat-EXAMPLE-external-id"
        }
      }
    }
  ]
}

The sts:ExternalId condition is what prevents a confused deputy. Keep it.

Attach the permissions policy

Scope secretsmanager:GetSecretValue to the exact secrets you intend to share. The store card shows a wildcard starting point; narrow the Resource list before you use it in production:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": ["secretsmanager:GetSecretValue"],
      "Resource": [
        "arn:aws:secretsmanager:us-east-1:123456789012:secret:prod/app/api-key-AbCdEf",
        "arn:aws:secretsmanager:us-east-1:123456789012:secret:prod/app/db-*"
      ]
    },
    {
      "Effect": "Allow",
      "Action": ["kms:Decrypt"],
      "Resource": "*",
      "Condition": {
        "StringEquals": {
          "kms:ViaService": "secretsmanager.us-east-1.amazonaws.com"
        }
      }
    }
  ]
}

The kms:Decrypt statement is required only for secrets encrypted with a customer-managed KMS key. Scope its Resource to that key ARN when you use one.

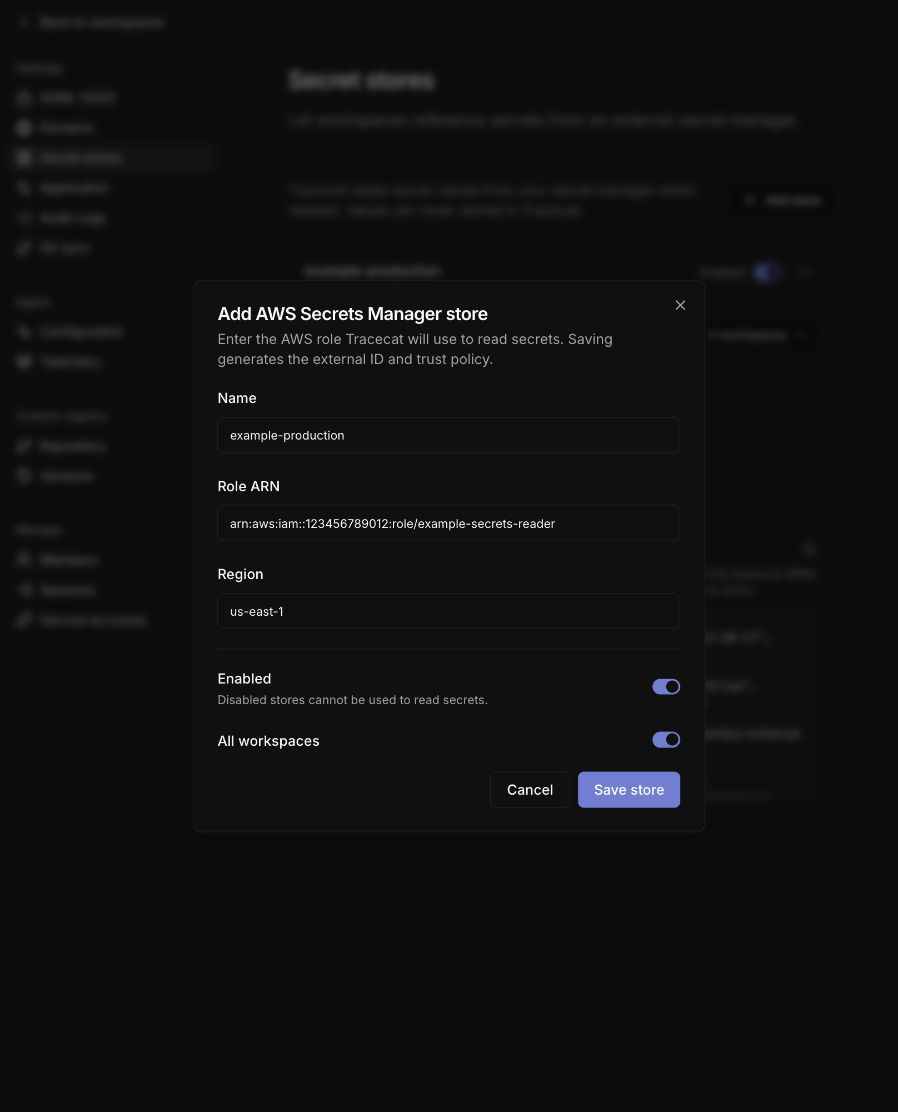

Add a store

Go to Organization settings → Secret stores and select Add store. You need the org:secret:create scope.

Field	Value
Name	Unique within the organization, such as `production-secrets`
Role ARN	The role you created, such as `arn:aws:iam::123456789012:role/tracecat-secrets-reader`
Region	The Secrets Manager region, such as `us-east-1`
Enabled	Turn off to block resolution for every reference at once
All workspaces	Allow every current and future workspace in the organization

After you save, the connection details expand. Copy the generated external ID, trust policy, and permissions policy into AWS. To show them again, expand Connection details on the store card. A store reads secrets in one region only. Create a second store for a second region.

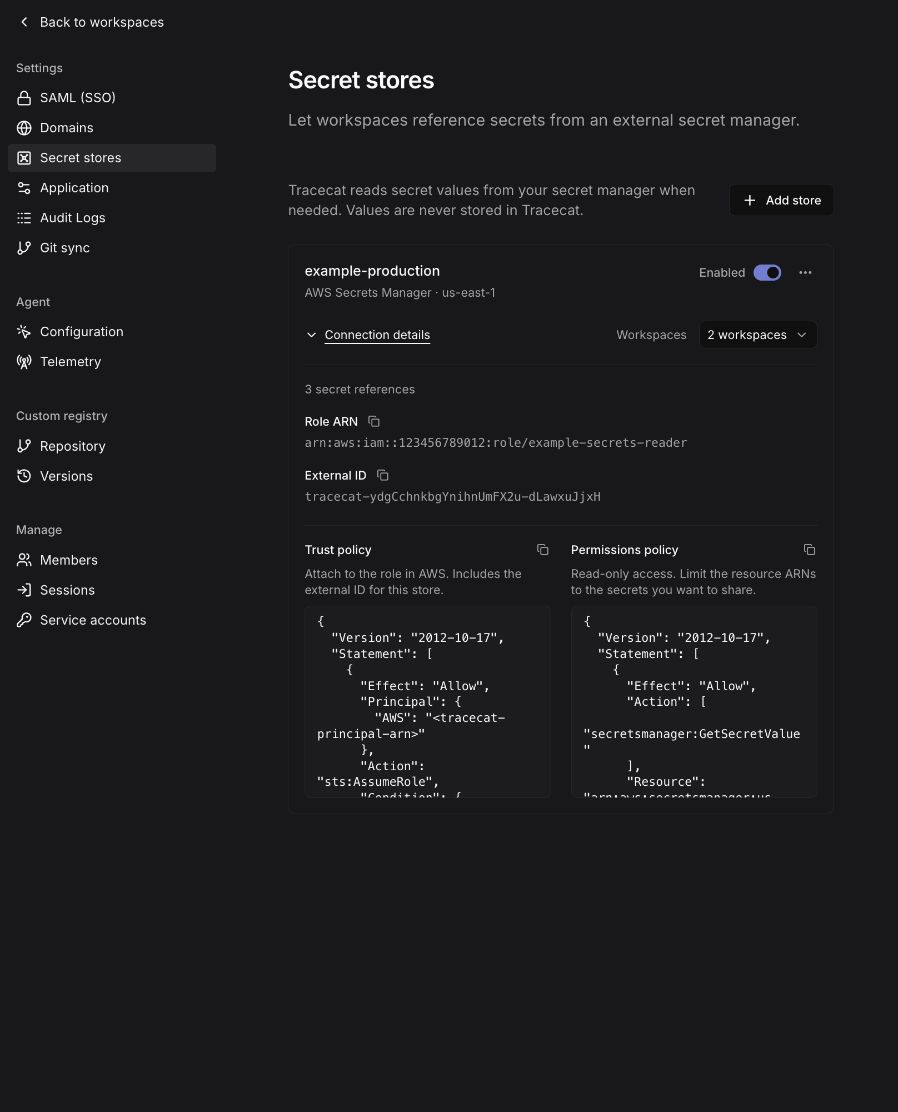

Store card with external ID, trust policy, and permissions policy

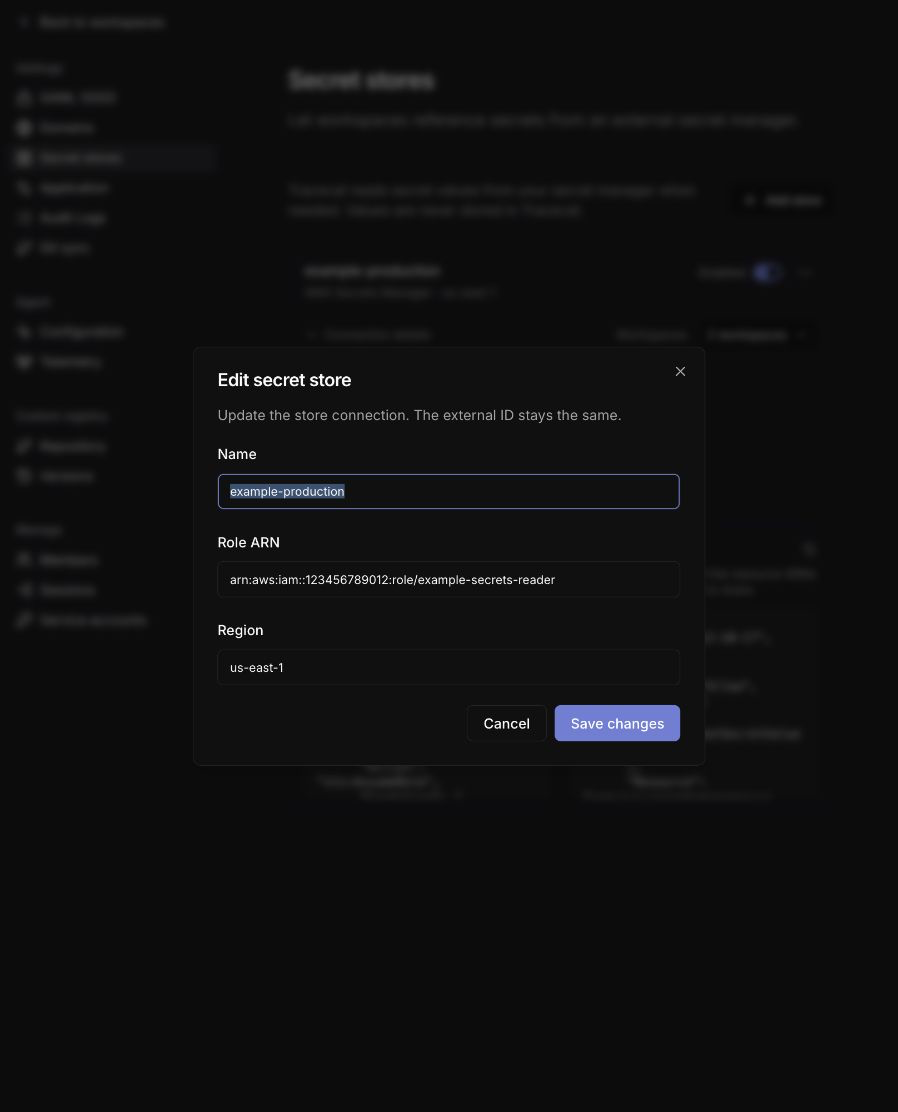

To change a store’s name, role ARN, or region, open its actions menu and choose Edit store. The external ID stays the same for the life of the store.

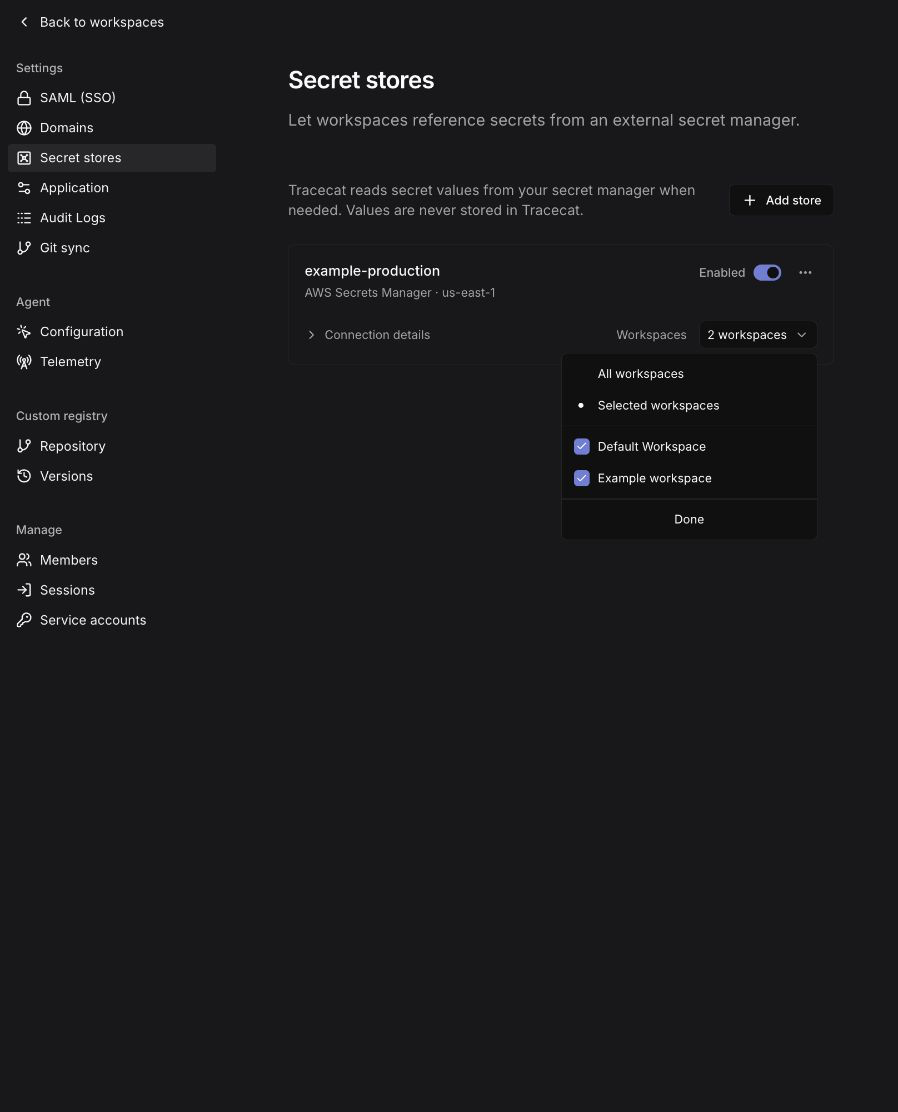

Authorize workspaces

Open the Workspaces picker on the store card. Choose All workspaces to allow every current and future workspace in your organization. Choose Selected workspaces to manage access using individual workspace checkboxes. Switching to Selected workspaces preserves individual authorizations and access for workspaces that already reference the store. Remove those references before unchecking a workspace. To stop secret resolution everywhere, turn off Enabled on the store. Workspace users see the store’s name, description, provider, region, and enabled flag, never its external ID or role ARN.

Create an AWS-backed secret

In the workspace, open /credentials, select Add credential, and switch the source from Tracecat to AWS Secrets Manager.

Field	Value
Name	Snake case. Referenced as `SECRETS.<name>.<key>`
Environment	Defaults to `default`
AWS secret store	Only enabled stores authorized for this workspace are listed
Secret name or ARN	The friendly name as shown in the AWS console, such as `prod/app/api-key`, or the full ARN
Value mapping	How the remote `SecretString` becomes secret keys

A friendly name is looked up in the store’s region. A full ARN must be in the store’s region; Tracecat rejects the reference at save time otherwise. AWS-backed secrets are always the custom type, and they never accept key values. To change one, edit its reference or key mapping.

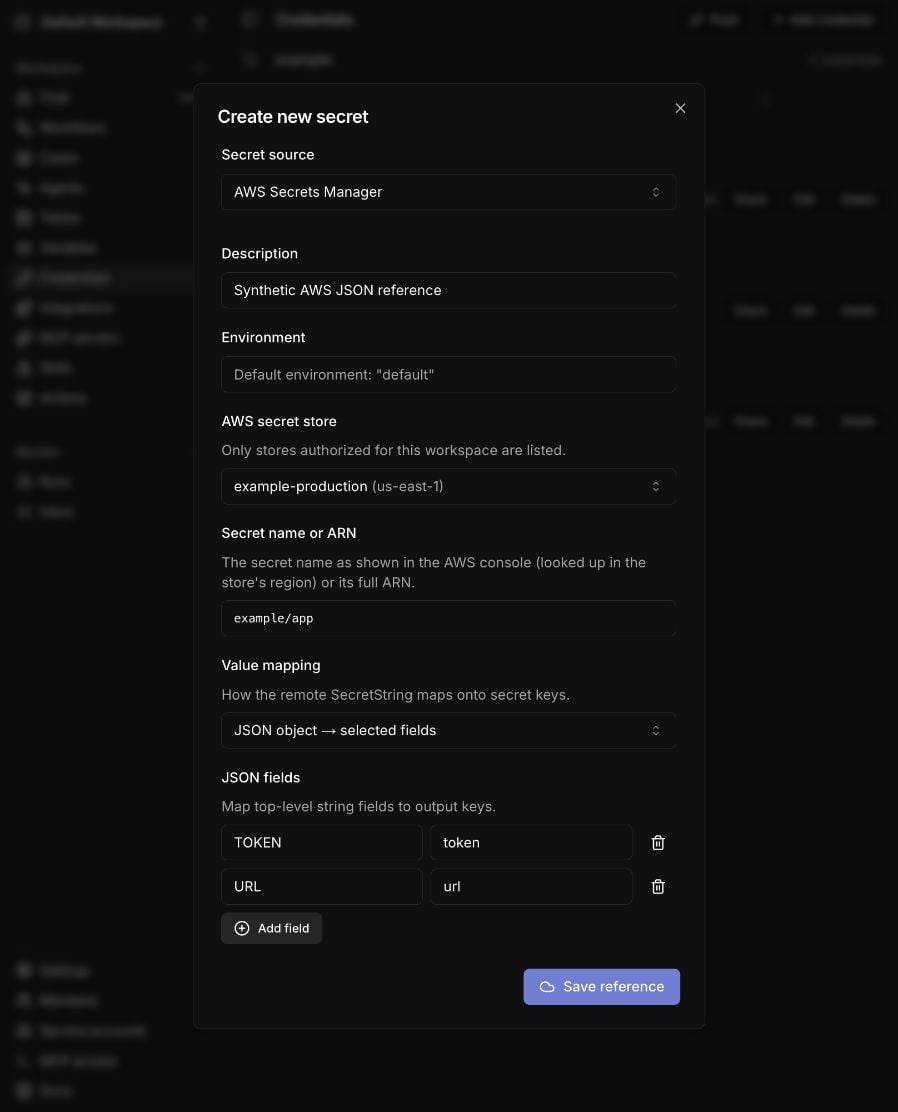

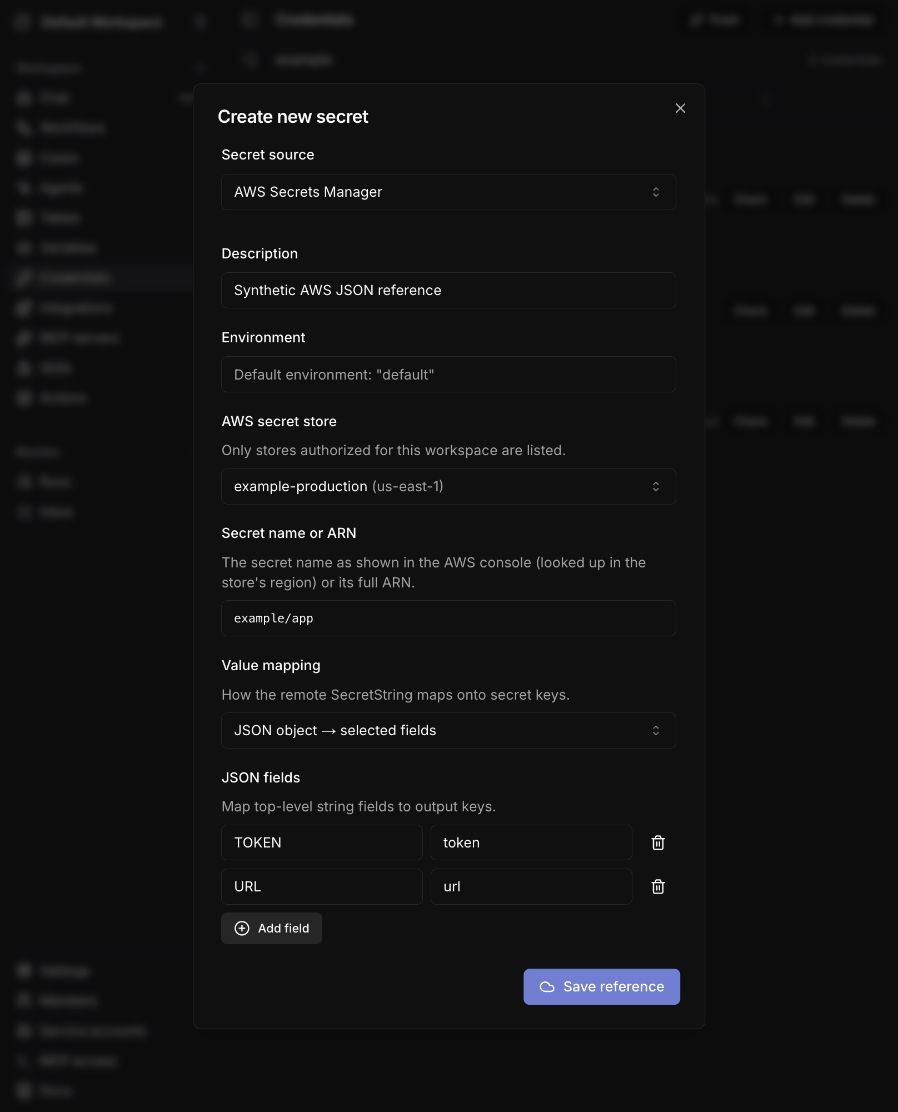

Create an AWS-backed secret with a JSON field mapping

Value mapping

Whole string → one key binds the entire SecretString to exactly one key:

# SecretString: sk-live-abc123
# Output key:   API_TOKEN
${{ SECRETS.stripe.API_TOKEN }}

JSON object → selected fields parses the SecretString as a JSON object and maps selected top-level fields onto keys you name. The field must exist and its value must be a string:

# SecretString: {"username": "svc_app", "password": "hunter2", "port": 5432}
# Mapping: USERNAME ← username, PASSWORD ← password
${{ SECRETS.app_db.USERNAME }}
${{ SECRETS.app_db.PASSWORD }}

Selecting port would fail with non_string_field because its value is a number. Output keys must be unique, and a mapping declares at most 100 keys or fields.

Verify a reference

Use Edit on an AWS-backed credential to change its store, secret name or ARN, and key mapping without deleting the credential.

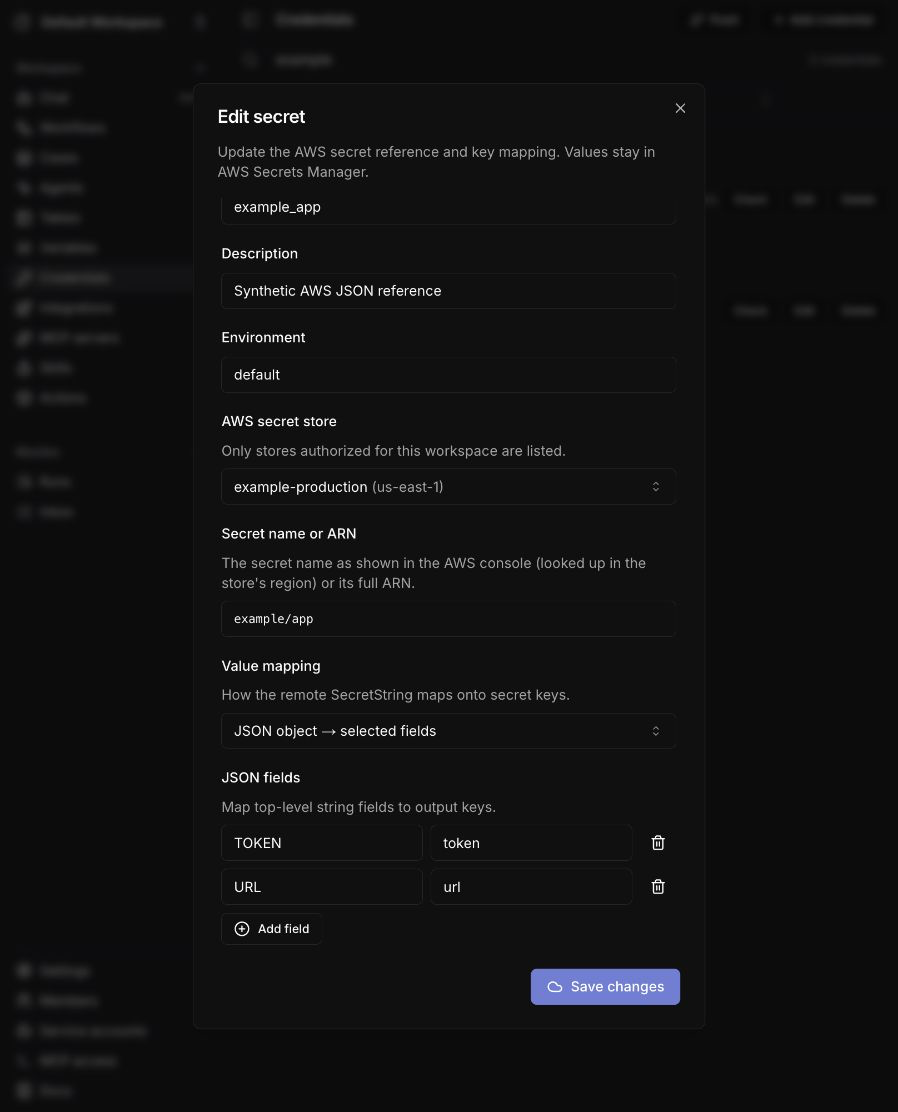

Edit an AWS secret reference and key mapping

The Check button resolves the reference server-side and reports Reachable with the resolved key names on hover, or the failure code. The check never returns the remote value to the browser. Run a check after you create a reference, after you change an IAM policy, and after you move a secret between accounts or regions.

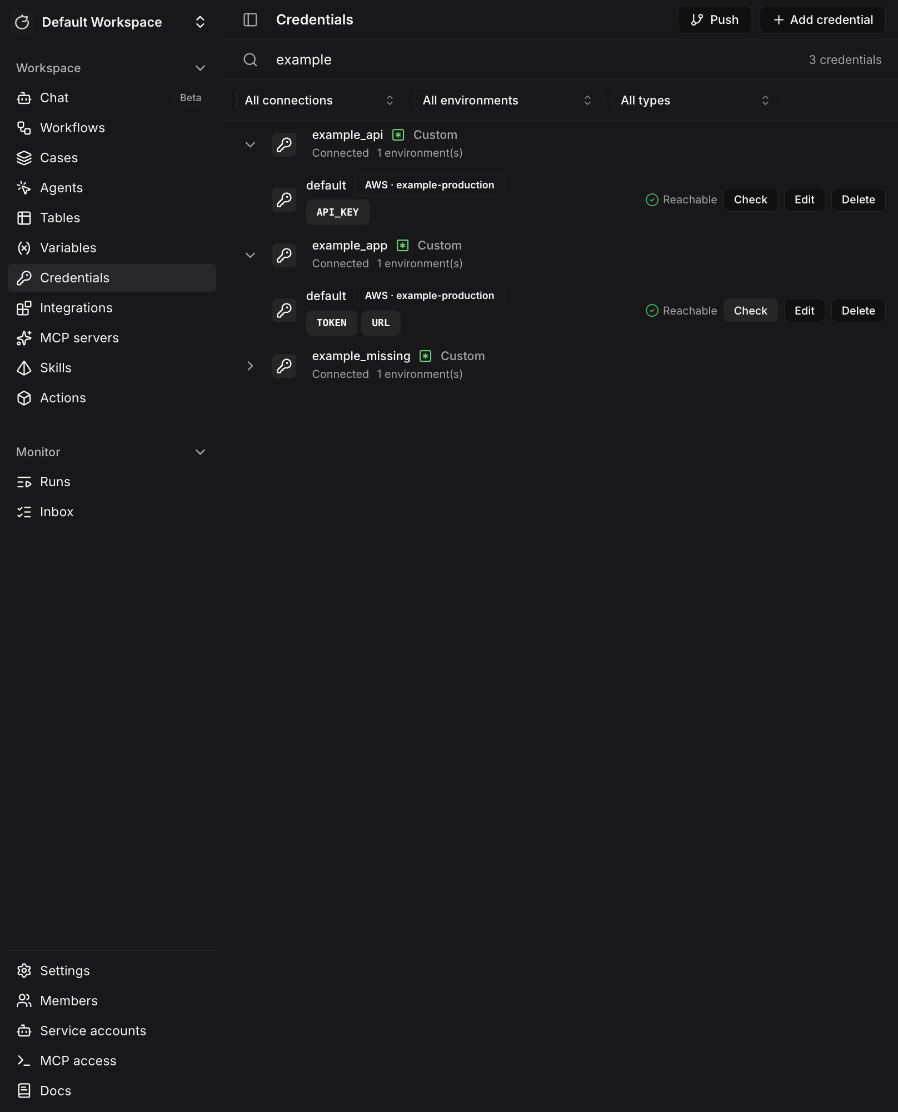

AWS-backed credentials showing Reachable checks

Runtime behavior

When an action requests an AWS-backed secret, Tracecat loads the reference rows, closes the database session, then resolves every reference in parallel. Reads are deduplicated per store and remote reference within one resolution, so a secret mapped onto two aliases costs one GetSecretValue call. A configured AWS-backed secret fails loudly even when the action declares it optional: a missing store grant or an unreadable remote secret raises rather than silently skipping the credential. The error names the secret and environment, and carries the resolution error code. Connection attempts time out after 5 seconds, reads after 10 seconds, and the AWS SDK retries up to 3 times.

Lifecycle rules

You cannot delete a store while any workspace secret references it. Delete the references first; the store card shows the reference count and disables the delete button.
You cannot revoke a workspace authorization while that workspace still holds secrets referencing the store. Delete those secrets first.
Disabling a store fails every resolution with store_disabled while keeping the references intact. Use it to cut access without deleting configuration.
Deleting an organization deletes its stores and authorizations.
Deleting a workspace deletes its store authorizations.

Troubleshooting

Resolution failures surface one of these codes in the check result and in the action error:

Code	Cause	Fix
`store_disabled`	The store’s enabled toggle is off	Re-enable the store in Organization settings
`assume_role_failed`	`sts:AssumeRole` was denied	Check the trust policy names the Tracecat principal and the store’s external ID
`access_denied`	The assumed role cannot read that secret	Add the secret ARN to the role’s `secretsmanager:GetSecretValue` resources, and check the secret’s resource policy
`not_found`	No such secret in the store’s region	Check the name or ARN, and that it exists in the store’s region
`decryption_failed`	The role cannot use the secret’s KMS key	Grant `kms:Decrypt` on that key to the role, and allow the role in the key policy
`throttled`	Secrets Manager or STS rate limits	Reduce concurrency, or request a quota increase
`timeout`	The AWS call did not complete in time	Check network egress from the Tracecat deployment to AWS
`binary_value`	The secret holds `SecretBinary`	Store the value as `SecretString`
`malformed_json`	JSON mapping, but the value is not a JSON object	Switch to whole-string mapping, or store a JSON object
`missing_field`	A mapped field is absent from the JSON object	Correct the field name, or add the field in AWS
`non_string_field`	A mapped field is not a string	Map a string field, or store the value as a string
`invalid_mapping`	AWS rejected the request parameters	Check the secret name or ARN format
`region_mismatch`	The ARN’s region differs from the store’s region	Use an ARN in the store’s region, or create a store in the ARN’s region
`unknown`	An unclassified AWS error	Check the reported AWS error code

Limits

AWS Secrets Manager is the only supported provider.
One store reads one region.
Tracecat reads the AWSCURRENT version stage only. Staged and previous versions are not addressable.
A key mapping declares at most 100 output keys.
Rotating a secret in AWS needs no change in Tracecat: the next resolution reads the new AWSCURRENT value. Agent LLM requests can keep using the previous value for up to 60 seconds.
The LiteLLM service resolves AWS-backed agent LLM credentials with its own AWS principal. When that principal differs from the one in your trust policy, as on the Fargate deployment, those requests fail with assume_role_failed. Store agent LLM credentials as local secrets on those deployments.

See Secrets for local secrets, secret types, environments, and expression syntax.
See Environment variables for where the operator sets the AWS AssumeRole variables on a self-hosted deployment.
See RBAC for the org:secret:* scopes that gate store management.
